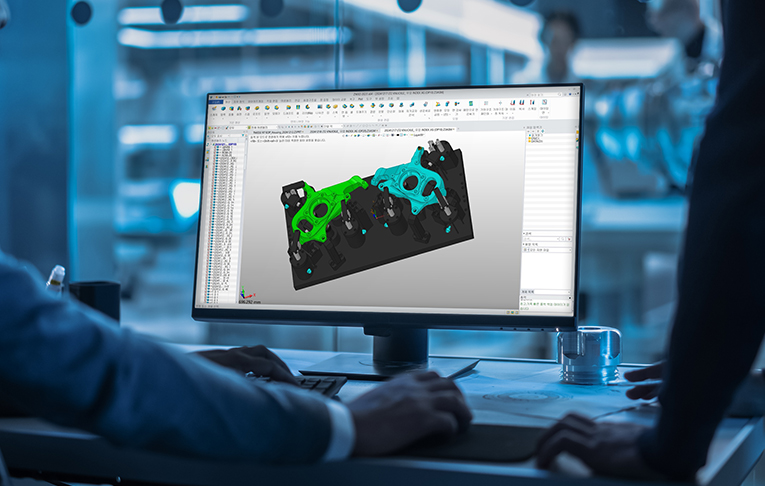

Process Optimization through Technical Drawing Interpretation
By interpreting technical drawings, we derive the optimal manufacturing process
and deliver products that meet customer needs in the shortest possible time.
-
Ensuring Quality and Safety
-
Optimizing Equipment Utilization
-
Deriving Optimal Processes
-
Preventing Process Errors

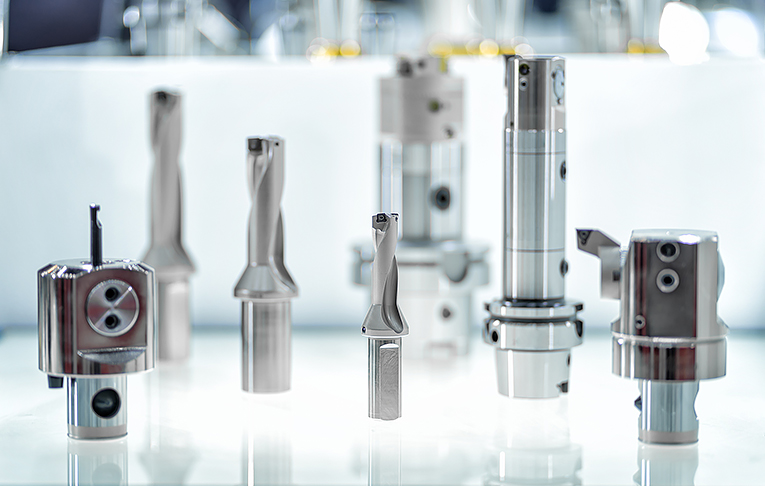

Machining Process Tooling Technology
We collaborate with specialized tooling manufacturers to produce dedicated tools tailored to material type, shape, and rigidity.
-
Drawing Interpretation
-
-
Tooling Review
-
-
Consultation with Manufacturer
-
-
Tooling Production
-
-
On-site Validation
-
-
Modification & Improvement
-
-
Re-validation

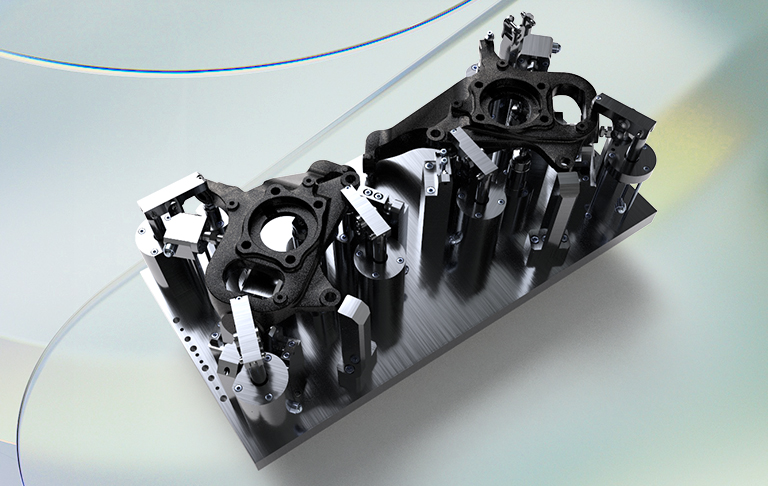

Process Jig Design and Operation Technology
- Based on a thorough review of technical drawings, we design optimized machining processes.
- We evaluate jigs for the designed process (single-action, single-axis, or dual-axis)
- The jig is then integrated with equipment to establish the most efficient operational path
